Stainless Steel Barn Sliding Door Hardware Kit I Shaped with Small Roller
Stainless Steel Barn Sliding Door Hardware Kit I Shaped with Small Roller
Detail Information
Product Introduction
Stainless Steel Barn Sliding Door Hardware Kit I Shaped with Small Roller
Stainless Steel Barn Sliding Door Hardware Kit Y Shaped with Big Roller is a great design for home, which is a popular new way to bring innovation into the home and close off bedroom and side room in a stunningly unique way. The door is hung on a piece of hardware with a wheel. That rolls along a track mounted to the wall.
Product Detailed Parameters
|
Item no
|
M00122
|
|
Finishing
|
satin nickel
|
Remark | one-piece rail packed |
Material | steel |

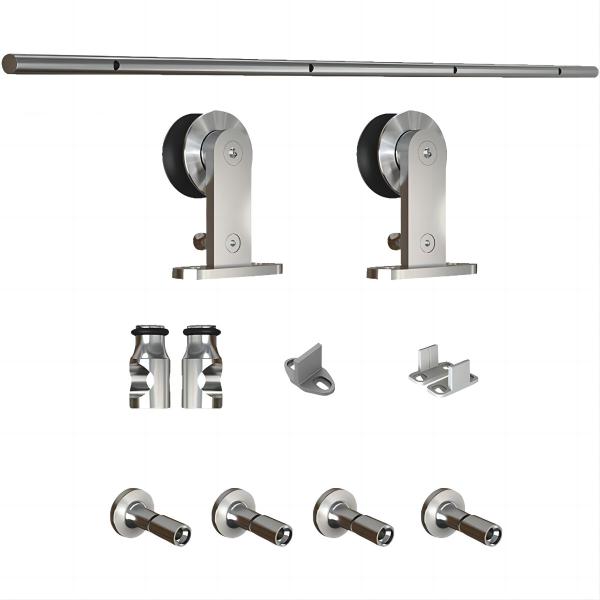

Description | Barn door hardware kit 2 M long track with 6mm thickness, 2 J brackets and wheels, 2 anti-jumpers, 1 stopper, 5 anchors, 5 long screws |
|
Qty/ctn
|
1 set
|
|
Carton size
|
L: 204 W: 11.5 H: 8.5 |
CBM/ctn | 0.020 |
G.W./ctn | 7.75 |
N.W./ctn | 7.2 |
MOQ(pcs) | 100 |
Product Features
Features :
Complete single sliding wood door hardware kit with all fittings.
Clearance above door: 4-1/2''
High-quality material: Reindorced 1-in. dia. * 1/16-in. 304 grade stainless steel tail will not bend or bow.
Load-bearing capacity: works with 240lbs. per door.
Easy to install: suitable for DIY projects.
Space-saving: makes your room look more spacious without the usual door opening.
Durable: high purity bearing steel Gcr15, tested for 100000 times.
Wide use: ideal for use with solid or hollow core interiors doors.
Package :
Rails: Rails come with pre-drilled holes of 16 inch spacing. Rail is made by solid 1/4" thick stainless steel. Fit door panel width: 36"-40".
Rail Spacers & Lag Bolts: With lag bolts and the spacers, it is used to connect the rail on the wall.
Hangers: The strap of the hanger is made by 1/4" thick stainless steel and the wheel is made by duty nylon, very durable and smooth. Fit door panel thickness: 1 3/8" and 1 3/4".
Door Stoppers: Door stoppers slide along the rail and tighten down at any point to stop your doors anywhere you want, and they're cushioned by rubber caps for a quiet close.
Floor Guide: Mark center line of overlap and place center of floor guide in line. Slide the door closed and secure the floor guide.
Anti-Jump Discs: Fasten anti-jump discs to top of door by placing them an least 1" from the edge of door.
What we can do for you?
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
