Double Bifold Barn Door Hardware Kit
Double Bifold Barn Door Hardware Kit
Detail Information

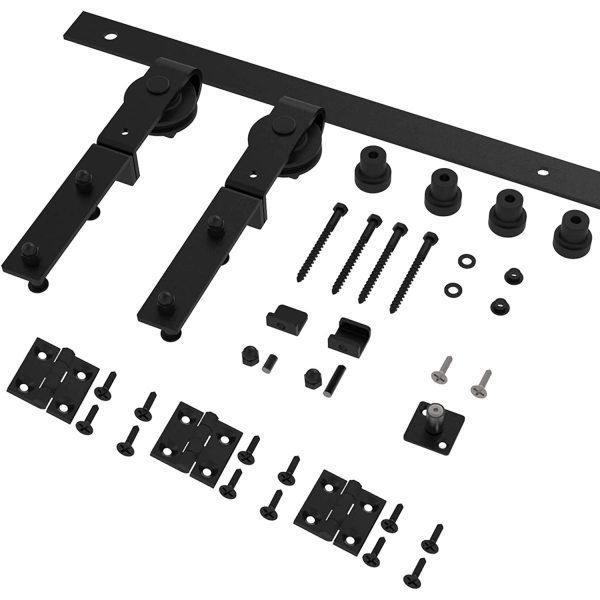

Product Detailed Parameters
|
Item no
|
M00310
|
|
Finishing
|
Satin Black
|
Remark | one-piece rail packed |
Material | Steel |
Description | Barn Door Track,6mm thickness,2x Door Stoppers,2x Door Hangers,1x Floor Guide,2x Anti-jumpers,5sets x M10 Wall Mounted Screws and anchors,6x M10*60 Bolts for 40-45mm doors,1x Track Connector ,,1x Manual |
|
Suitable door width
|
12'', 15'', 16'', 18'', 20''
|
|
Carton size
|
L: 204 W: 14 H: 8.5 |
CBM/ctn | 0.038 |
G.W./ctn | 8 |
N.W./ctn | 7.4 |
MOQ(pcs) | Negotiable |
Product Introduction
Double Bifold Barn Door Hardware Kit
Double Bifold Barn Door Hardware Kit is made of high-quality steel with premium nylon roller wheel and Gcr15 roller bearing, the surface is black matte, other color can be customized.
Push-pull opening and closing way saves lots of space which is quite suitable for classical decoration style.
Double Bifold Barn Door Hardware Kit
Features
STRONG & STURDY: High strength industrial grade tracks and pulleys can easily hold 220lbs loads,anti-corrosion and anti-rust.Maintains its beauty and longevity for many years.
Easy to Install: Attached with the most detailed product installation and operation instructions. and detailed graphical marking and measurement methods.You can install it by yourself.
Smoothly & Reduce Noise: Push and Pull the door very smoothly and effortlessly. Door stoppers with integrated spring, reduces vibration for quiet closing, door floor guide protects your door and. No punching on the ground.
Space Saving: Save space for opening and closing doors.
Suitable for interior door in kitchen, bedroom, dressing room, laundry room, utility room, entertainment console, club, pub and so on.
Package :
Spliced pre-drilled holes rails with full set installation screws rollers,
full set of L-Shaped Bracket
door stoppers
floor guide
Anti-Jump blocks
door panel is NOT INCLUDED
Please reserve 6'' space from the top of the door to the ceiling.
Installation of Double Bifold Barn Door Hardware Kit
Step 1
Rail installation
Note:
*Do not mount the rail spacers directly onto drywall.
*Solid wooden headerboard is required for following cases:
-the holes on the rail do not line up with studs.
-the openning has thick frame/baseboard (the gap between
door & wall only has 1/4”~3/8").
1. Location of center of the rail=
height of the door+115/16".
2. Using a level,lightly score a level pencil line on the wall/headerboard where the center of the rail spacers will be fastened into,mark a line.
3. Drill fastener holes on the wall/(headerboard).
4. Mount the rail using the supplied lag screws,
washers and rail spacers.
Step 2
Installating the hardware on the doors
(Fit door thickness: 1"-1-5/8" )
1.Installing 3 hinges on the back of the doors.
2.Installing top connector plate onto the door.
*Aligns the top connector plate with the edge of the door.
Mark the screw holes on the top of the door and drill holes.
Tight the screws to get plates installed.
3. Installing the brass sleeve on the bottom of the door
*Drill a hole on the bottom of the door,
measure 13/8" from the bottom edge of the door and 3/4" from the front of the door.
*Using a 5/8" spade bit of forstner bit,drill a 7/8" deep hole and insert the brass sleeve.
Step 3
Hanging the doors on the rail
In order to determine the proper location for the bottom pivot plate,the doors must first be hung on the rail at the desired position in reference to the openning.
1. Pull forward to engage the top connector plate on the top of the door with the fixed roller and the adjustable roller.
*Be sure the set screw on the side of each roller is backed out so that it does not protrude into the slot openning
2. Lift the doors up and hang on the track.
3. Close the door and let the door cover the openning to find the best location for fixed roller.
4. Lock the fixed roller onto the rail by set hardware.
Step 4
Installing the bottom pivot plate
The location of this bottom pivot plate is critical for proper function of the bifold barn door.
1. Pull out the bottom of the door slightly and insert the bottom pivot plate into the brass sleeve located in the bottom of the fixed position door,reposition the door.
2. Using a level,plumb the door and mark the position of the bottom pivot plate on the floor(from edge and outside edge).
3. Put the bottom pivot plate on the marks and drill holes,secure the floor using the supplied screws.
4. Take the doors off the rail by removing the set screw on the fixed roller,insert the bottom pivot plate into the brass Sleeve,then re-hang the doors on the rail.
Step 5: Installing strip seal
Downlod Installation Munaul
of Double Bifold Barn Door Hardware Kit
of Double Bifold Barn Door Hardware Kit
